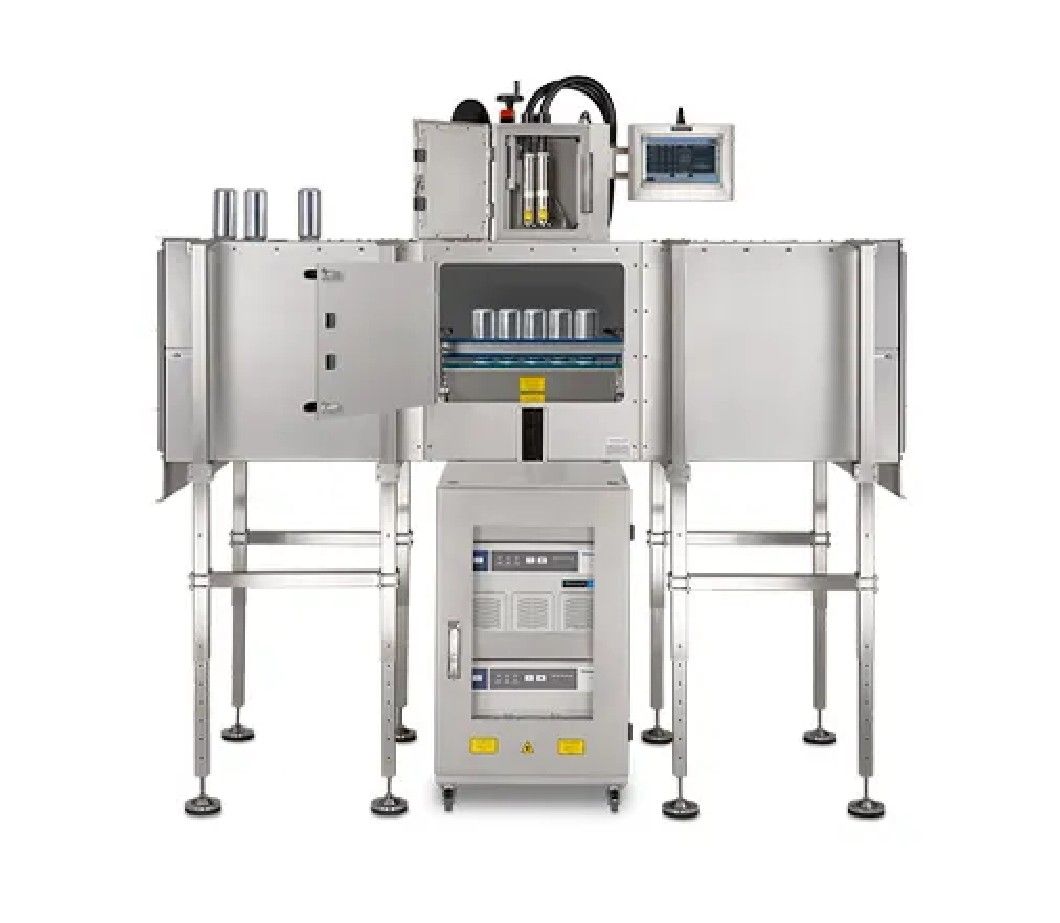

Videojet Lightfoot™ Canned solution

Innovative fiber laser solution suitable for high-speed canning applications


Videojet Lightfoot ™  The canning solution is developed specifically to meet the demanding requirements of high-speed beverage canning and is available to manufacturers who wish to upgrade their production lines with laser coding systems. This one-stop system is supported by continuous application and VideojetConnect ™ Remote Service  Provide support to large-scale service networks, providing the reliability and performance necessary to achieve production goals.

Lightfoot ™  The canned solution has fast printing speed and a sturdy design suitable for harsh environments, providing high-quality and accurate laser coding with an integrated system. Level 1 security protection design protects the personal safety of your operators, Lightfoot ™  The dual print head provides built-in redundancy, which can significantly extend normal operating time.


01

Product Advantages

Customized for canned applications


· Printing speed can reach 100000 cans/hour

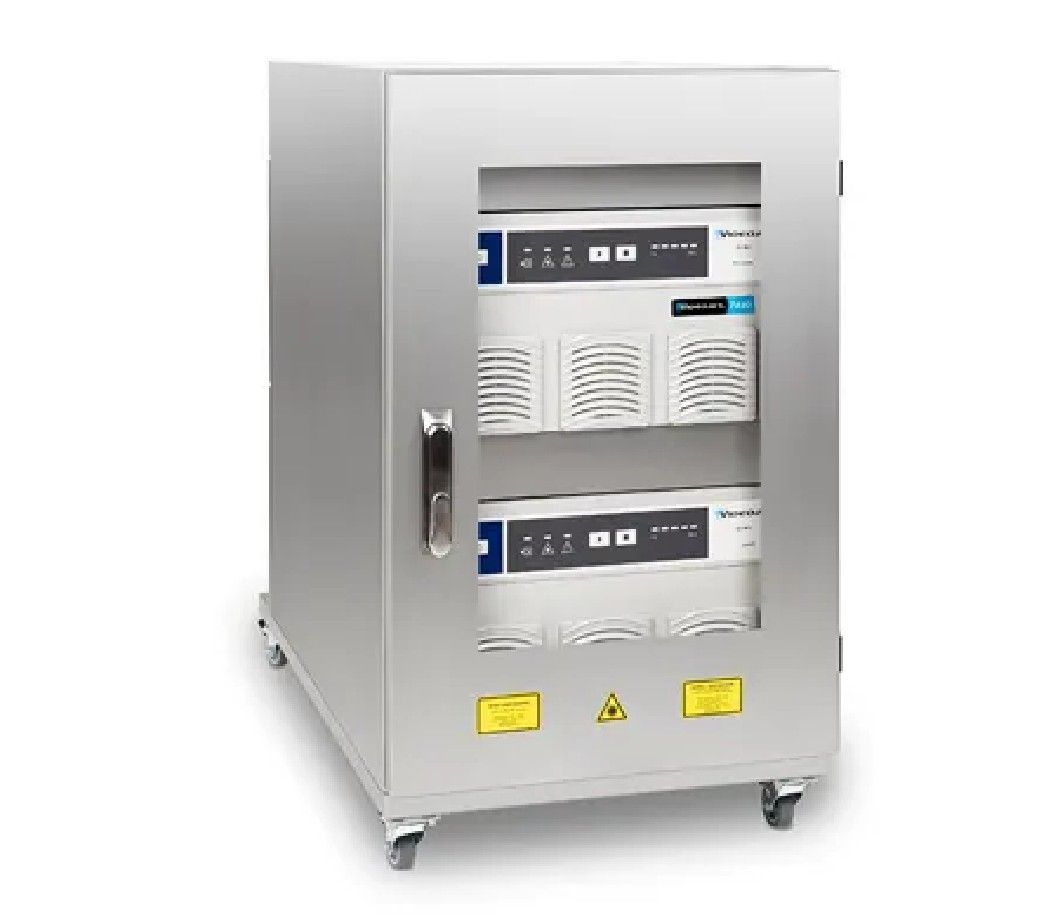

· The power cabinet has been optimized with IP65 rating and is washable

· IP69 grade print heads can easily handle harsh humid and high sugar environments

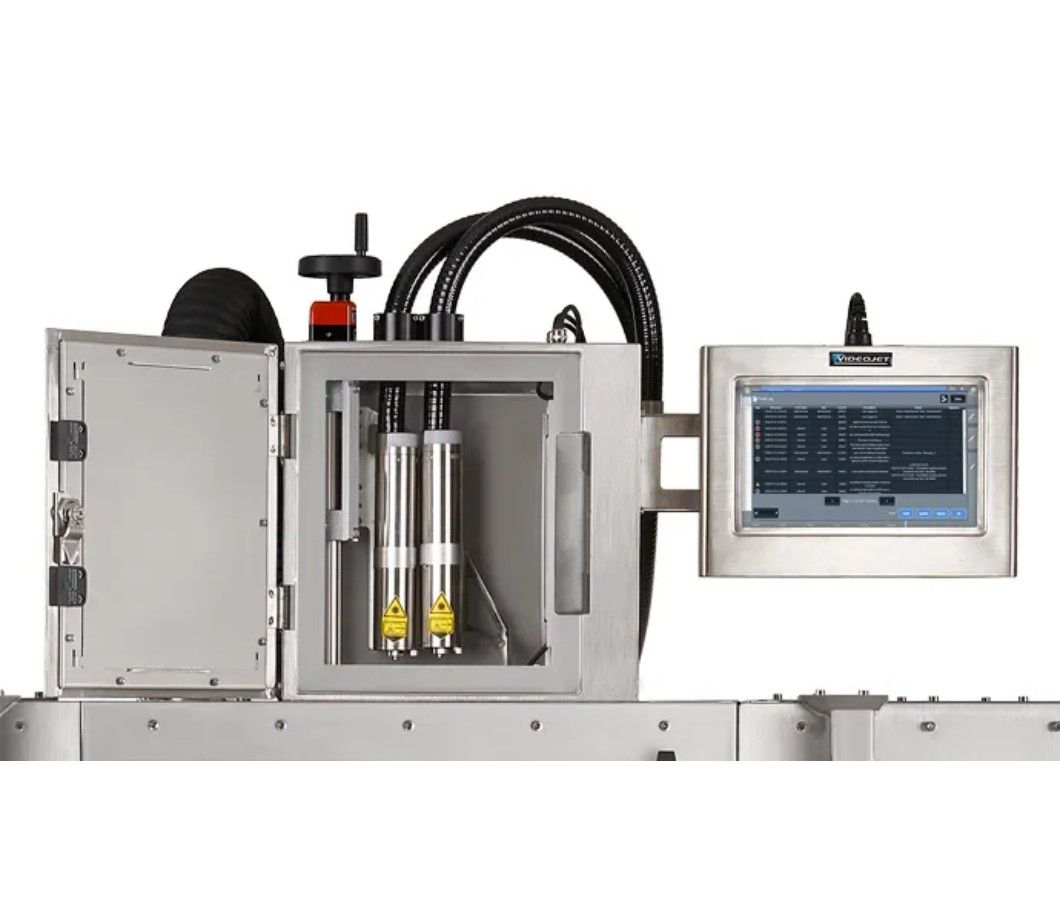

· Double print heads, print head backup ensures production line operation

*The speed capability varies depending on the application requirements.


Complete solution


· The enclosed device completely blocks light radiation, ensuring operator safety

· Wind knife can prevent dust accumulation in the output window of the print head beam, reducing the need for cleaning

· Connect with common production line integration or coding management solutions through standard industrial protocols

· VideojetConnect ™ Remote Service  Significantly improve production efficiency


02

Product Specifications

Specifications Videojet Lightfoot™ Canned solution
激光打码系统 双头7440光纤激光打码机
激光管 固态光纤
上限功率 2X 30 瓦
激光冷却 风扇
上限生产线速度 10万罐/小时
防护等级 IP65、IP69(激光打印头)
通道宽度可选项 300mm或600mm
激光源预计使用寿命 50,000 个小时
光束输出 可控光束
激光波长 1.04 – 1.09 微米
焦距选项 112.5 毫米 (4.43 英寸)
标准 I/O 连接 产品检测、行编码器、排烟
可选用户界面 TCS+、CLARiTY™ 激光打码机控制器、Smart Graph
使用工厂气源
认证/批准 EtherNetIP DOC、ProfiNet/PNO 认证、CE

* 以每英寸 10 个字符的单行喷印为基准


03

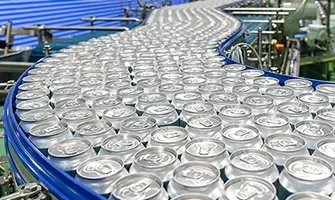

Application Area

Drink

Drink
