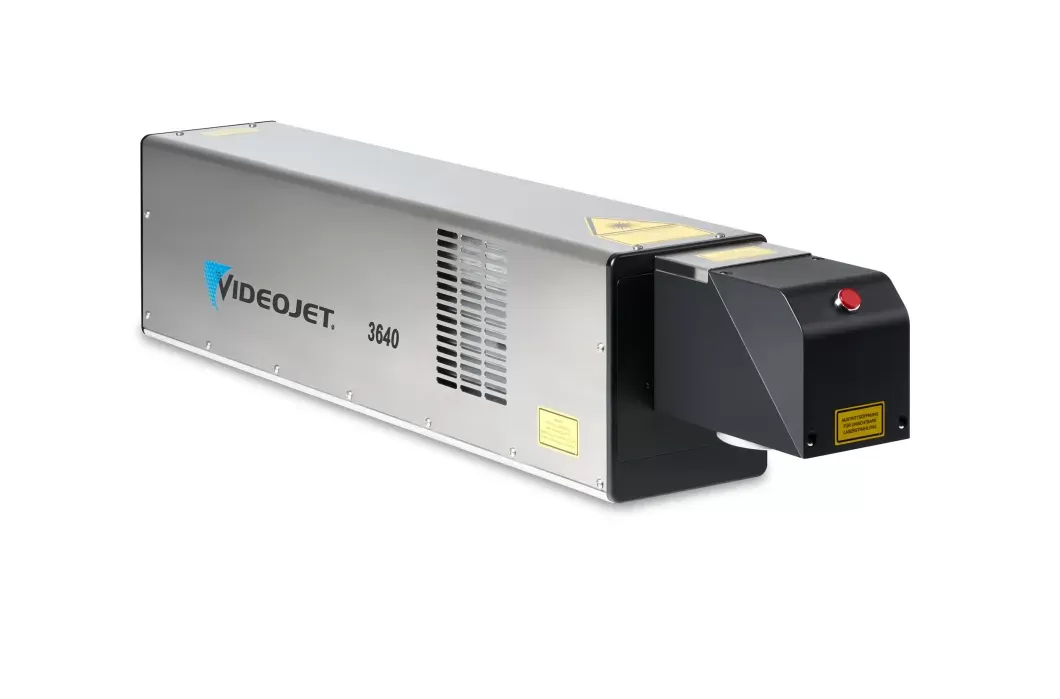

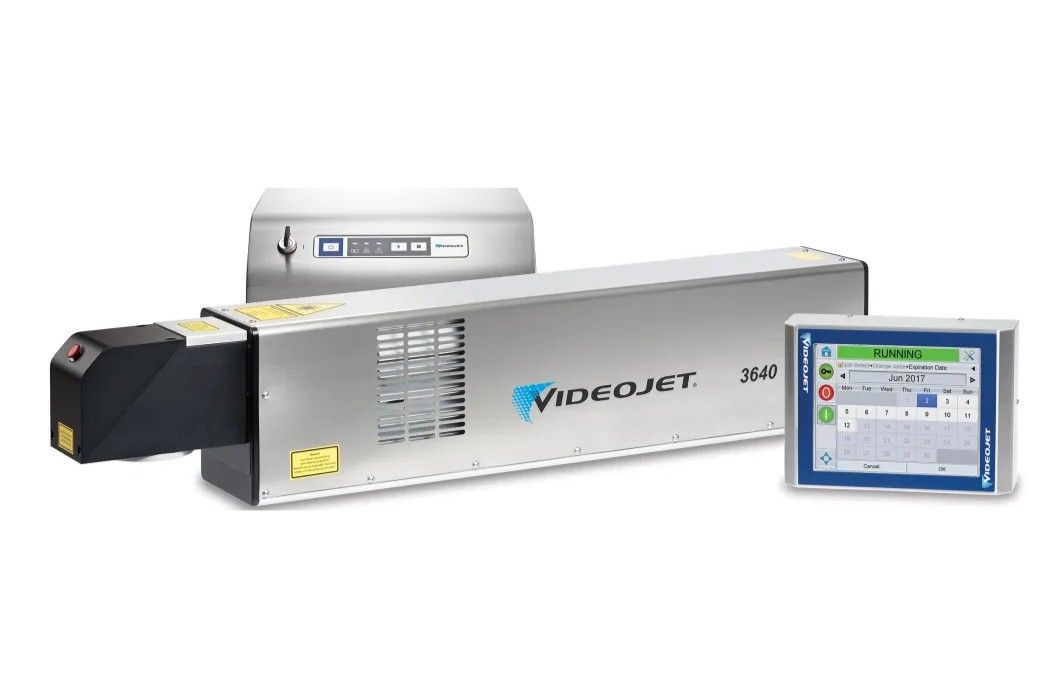

Videojet 3640 CO2 laser coding machine
The 60 watt 3640 carbon dioxide laser coding machine is designed to meet the identification needs of high-speed and high-yield applications in the pharmaceutical, tobacco, and beverage industries. It is a compact high-speed carbon dioxide laser coding machine that can process complex codes at high speed and has a larger printing area in the industry. In addition, Weidijie also provides other laser marking machine solutions to meet your various laser marking needs.
01
Product Advantages
Having the advantage of normal operating time can improve productivity and reduce costs:
· Videojet 3640 CO2 laser machine increases output with 60 watt power, optimized for high-speed and high-yield production lines
· Using air cooled laser sources with longer lifespan, almost no maintenance is required, thus maximizing the usability of the laser machine
· Optional VideojetConnect ™ Remote service, Weidijie experts can help improve productivity and solve potential problems
For high-performance industrial design:
· Suitable for harsh environments with high dust and humidity that require regular cleaning of the system
· Provide IP65 protection level
· Specially designed for round the clock operation of beverage, food, pharmaceutical, and tobacco production lines
Flexibility and simplicity are standard features:
· A compact and high-power laser coding system in the industry
· Easy integration, even for production lines with limited space
· Providing a larger printing area in the industry can reduce the number of laser coding machines required for multi column/wide width applications, thereby lowering investment and operating costs
02
Product Specifications
Specifications | Parameter values |
---|---|
激光管 | CO2 |
上限功率 | 60 瓦 |
激光冷却 | 空气冷却 |
上限打印速度 | 2,100 个字符/秒 |
上限生产线速度 | 15 米/秒(49 英尺/秒) |
防护等级 | IP54、IP65 |
光束输出 | 可控光束 |
激光源预计使用寿命 | 45,000 个小时 |
激光波长选项 | 10.6 微米、10.2 微米、9.3 微米 |
焦距选项 | 64 毫米(2.50 英寸)– 600 毫米(23.62 英寸) |
上限标识范围 | 601 x 440 毫米(23.66 x 17.32 英寸) |
标准 I/O 连接 | 内部端子连接 |
可选用户界面 | 触摸屏控制器(TCS+软件)/ 网络浏览器(TCS+软件)/ Smart Graph |
喉管 | 可拆卸,3 种长度 |
使用工厂气源 | 否 |
认证/批准 |
CE、TÜV/NRTL、FCC、KC、BIS 合规性(无需认证):ROHS、CDRH/FDA |
* 以每英寸 10 个字符的单行喷印为基准
03

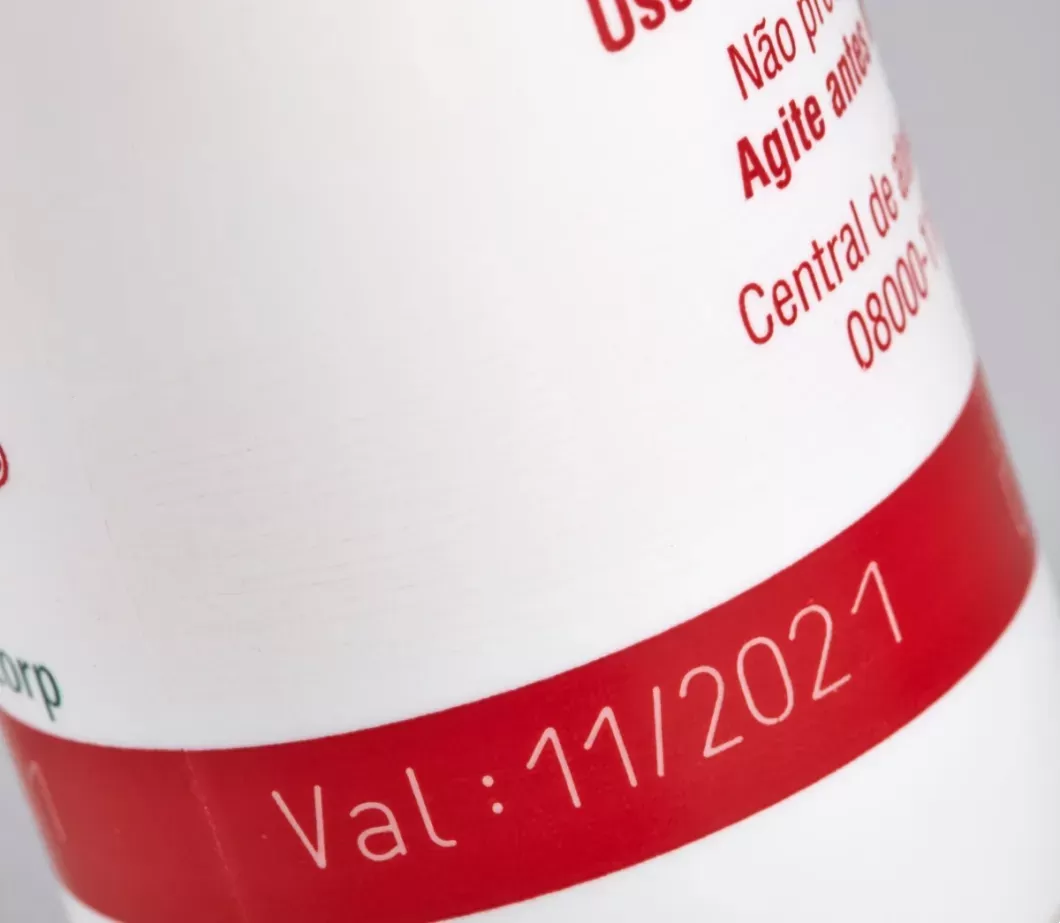

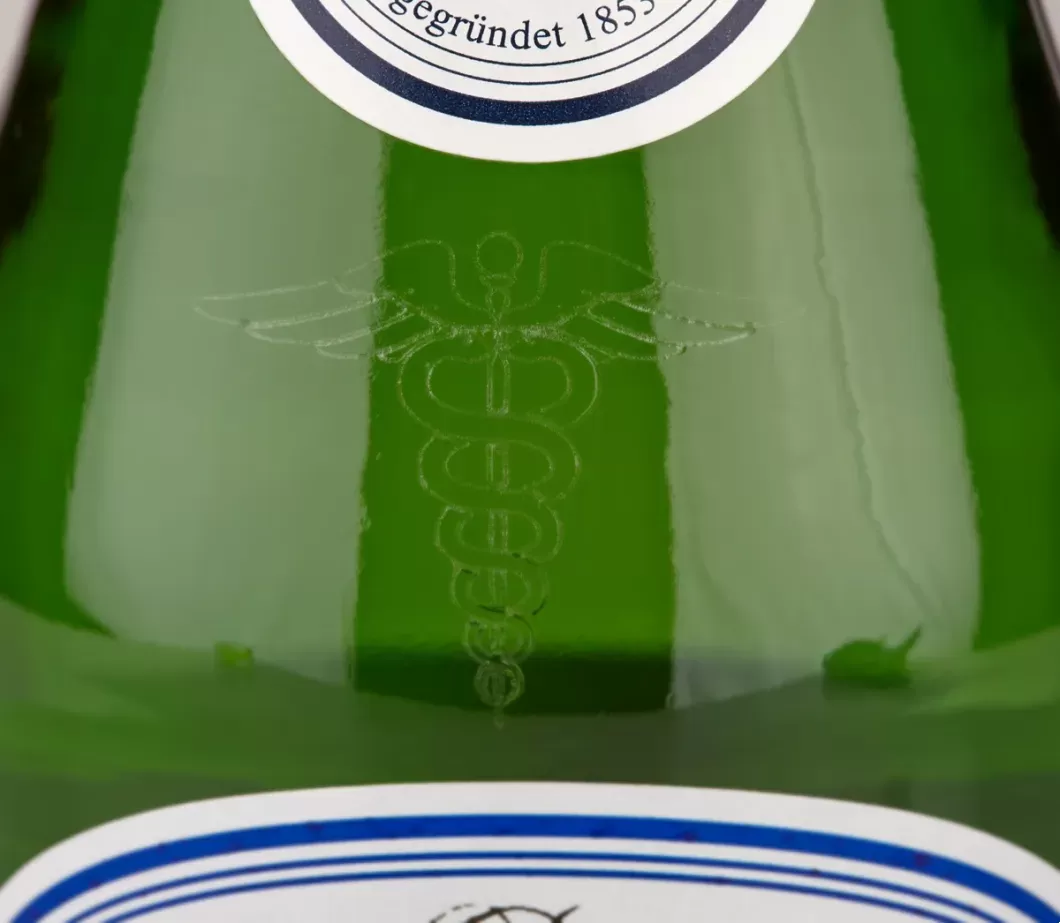

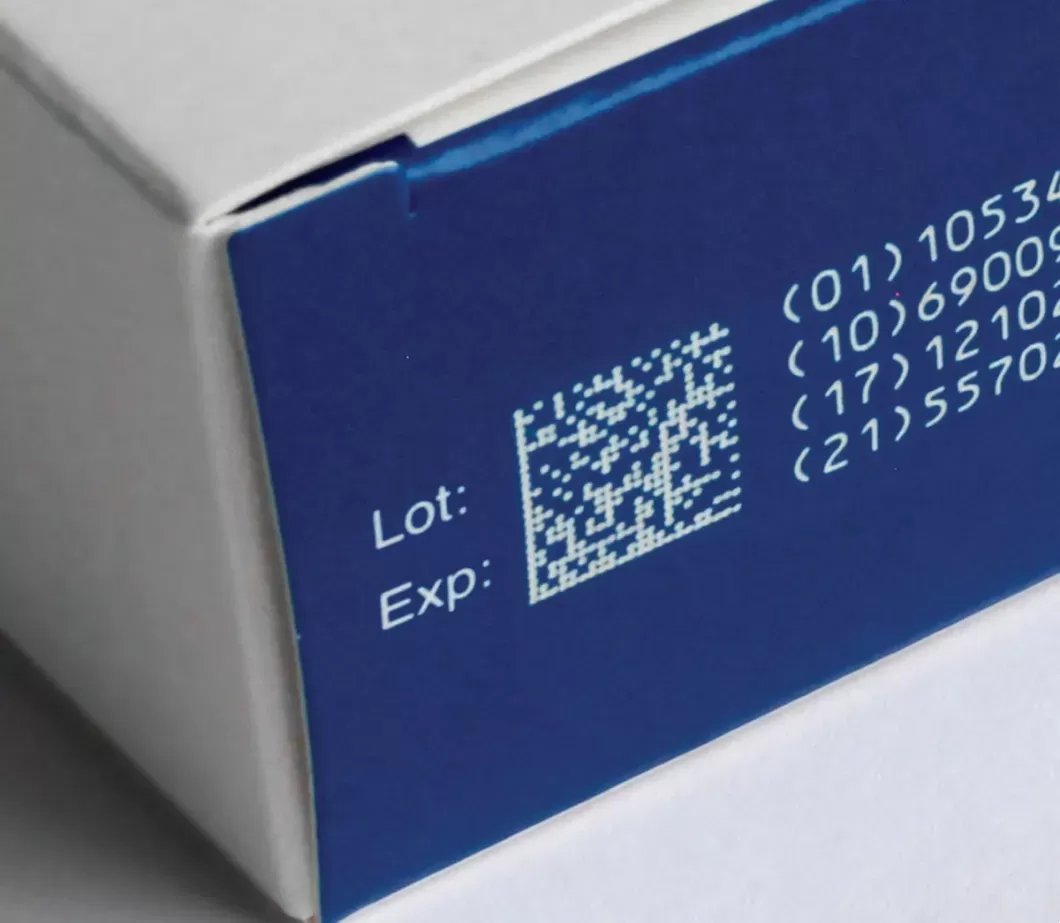

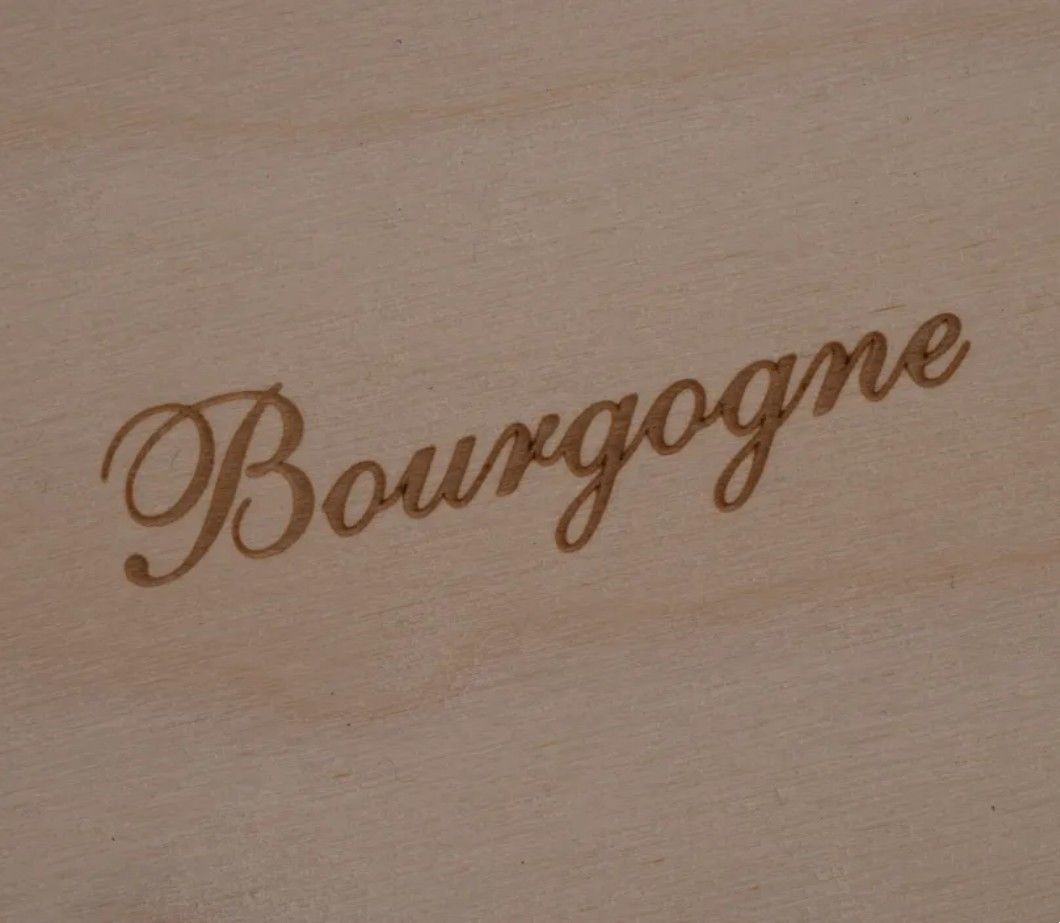

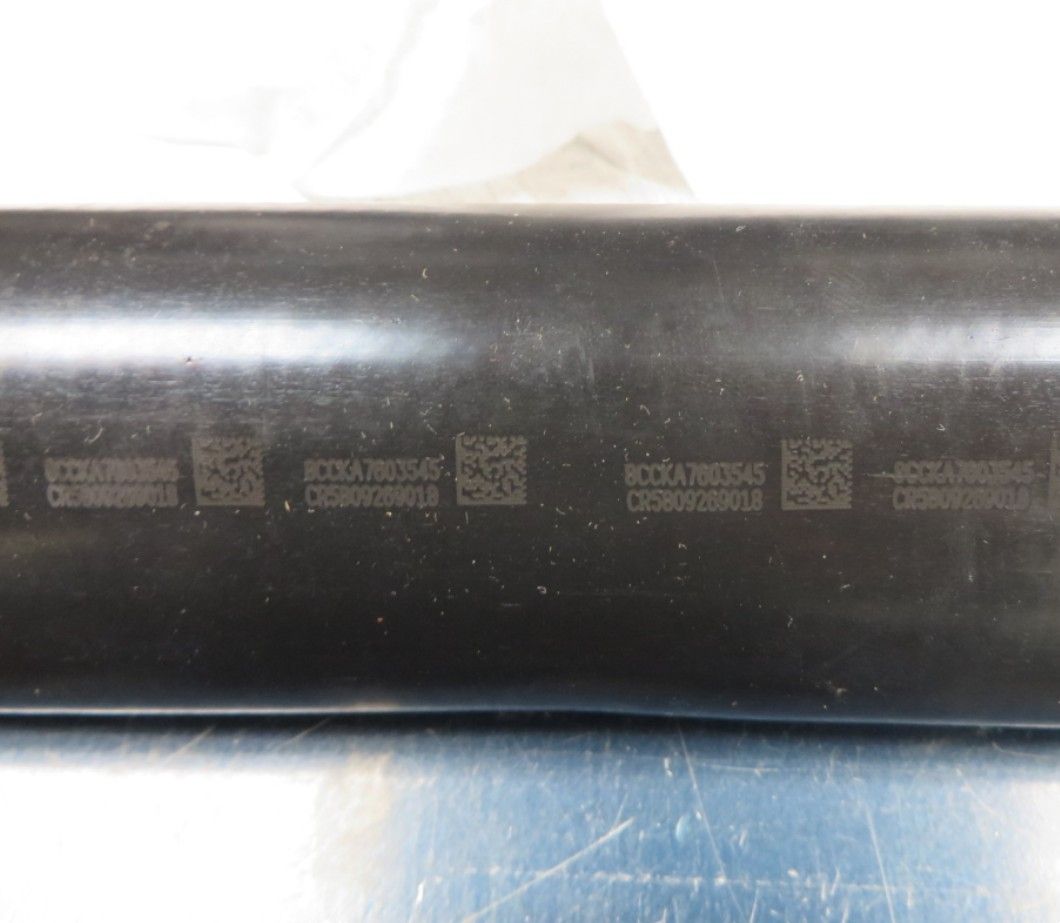

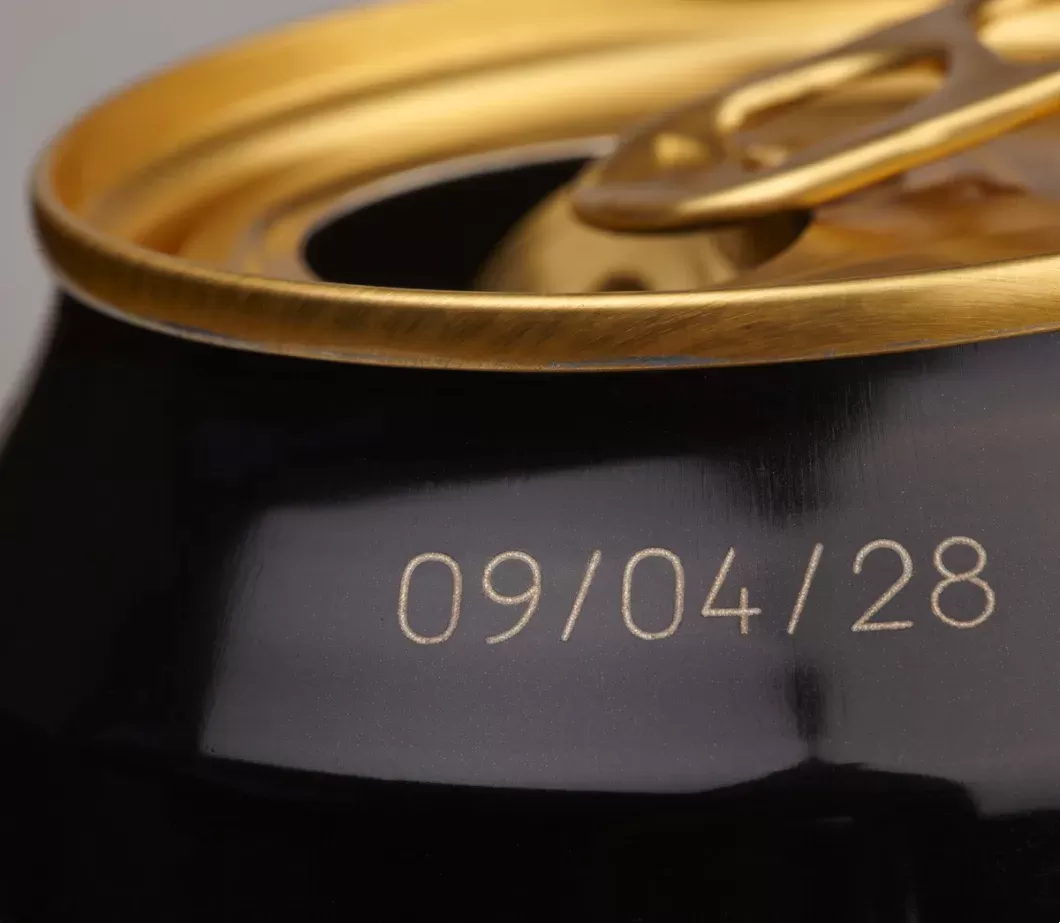

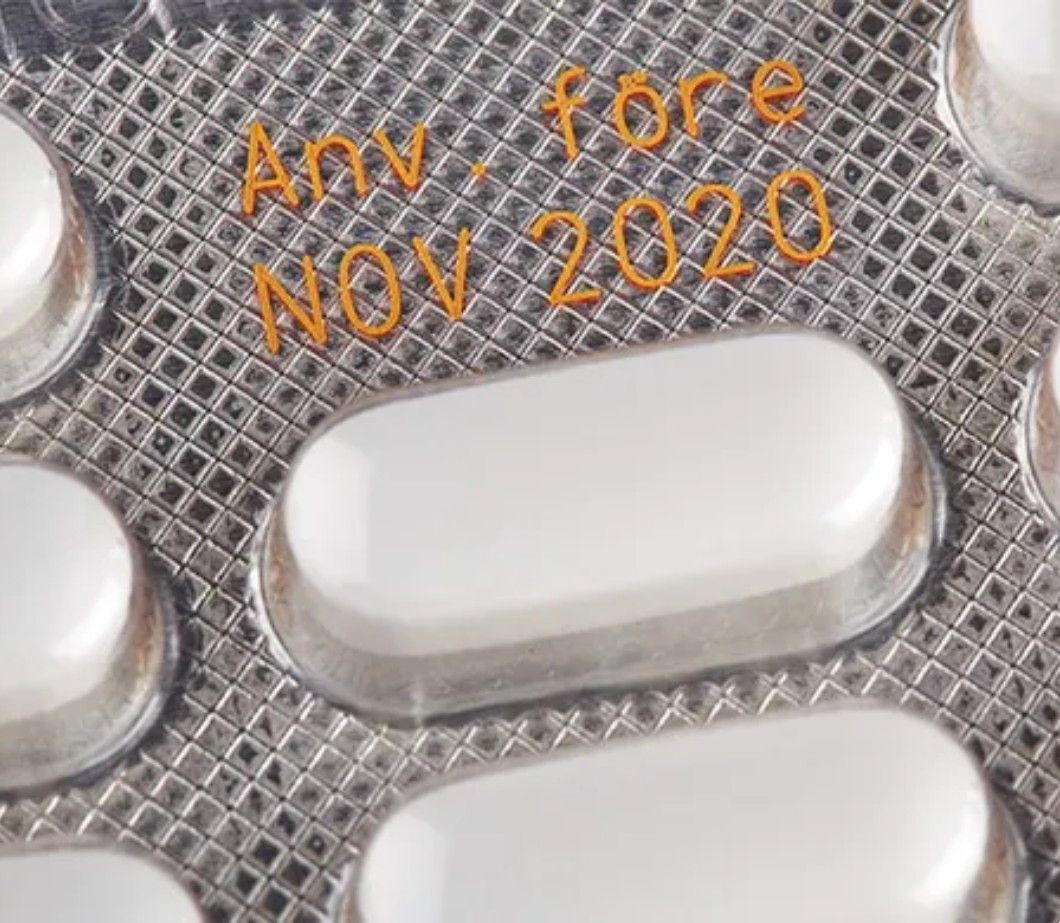

Application Area
